YAMAHA TRBX604FM CARAMEL BROWN 4-STRING ELECTRIC BASS GUITAR
and
| TRBX600 is all about the perfect balance of elements. The punchy tone of a 3D scuplted alder/maple laminated body, the timeless looks of a flame maple top, the power of Yamaha’s 3-band active/passive preamp, the playability of our slimmest bass neck. Everything you need, just how you need it.
- Alder / Maple body construction
- Flamed maple top
- Maple / Mahogany 5-Piece Neck
- Slim 38mm nut width
- 3-Band Active EQ with active/passive preamp
- Battery Alert LED
TRBX600 SERIES
Great tone, outstanding comfort, boutique looks. Zero compromise.
FEATURES
PICKUPS
YGD designed H5 pickups are defined by a clean, open tone that’s perfectly matched with the flexibility of the active/passive preamp design. Their quad-polepiece design and alnico magnets give them the power to drive the active circuit and the sensitivity and subtlety to capture every nuance in passive mode.
ELECTRONICS (ACTIVE/PASSIVE SELECTER, BATTERY ALERT)
TRBX600 models feature an audiophile-grade active/passive circuit for fine tonal control and extreme flexibility. The advanced design offers a level-matched output whether in passive or active mode and tone-switching circuitry that seamlessly moves from treble control to master passive tone. High-quality gold-plated parts are used for key signal chain contacts, providing increased conductivity and reliability and a battery alert LED installed on the back panel gives instant indication of low power to eliminate sudden power loss during performance.
NECK
TRBX’s neck design combines a fast, ultra-comfortable profile with 5-pc maple/mahogany laminated construction for outstanding stability and excellent tone.
NECK JOINT
TRBX uses a precision fitted bolt-on neck joint for maximum adjustability and clear, punchy tone. Developed through hundreds of hours of play-testing, the refined neck joint shape perfectly balances strength, vibration transfer and upper-fret access.

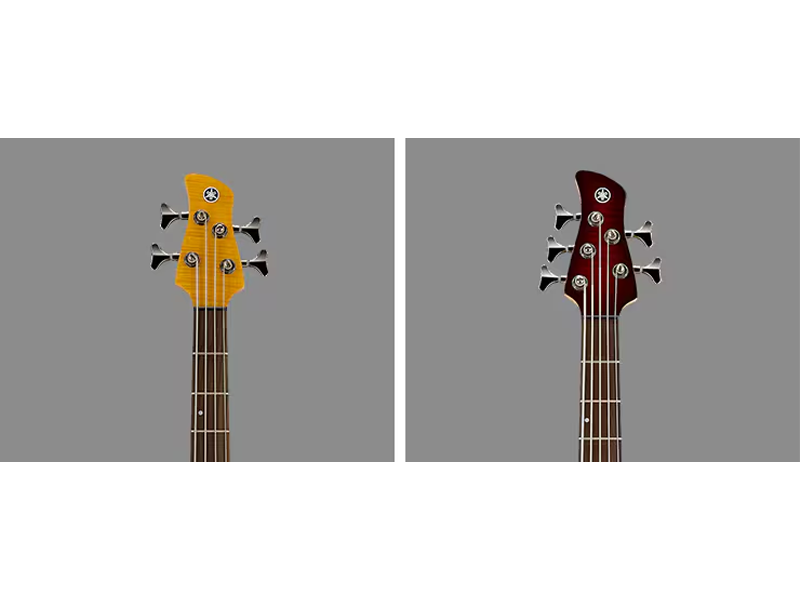

HEADSTOCK
Straight string pull from nut to machine head eliminates lateral tension, providing superior tuning stability and reducing overtones.

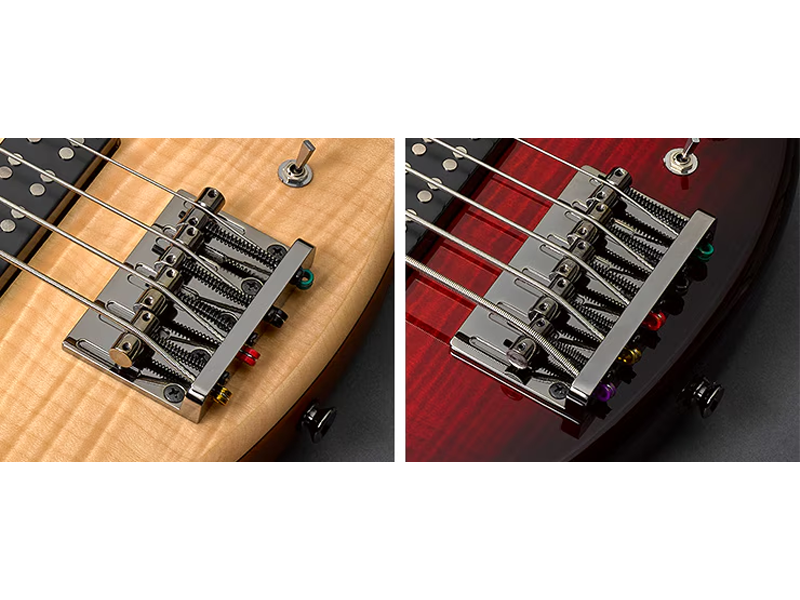

BRIDGE
A high-mass die-cast bridge efficiently transfers string vibrations to the body for full, rich tone combined with excellent adjustability and road-tested durability. 18mm string spacing on the 5-string model offers outstanding playability for technical slap or finger styles.
OUTPUT JACK
Yamaha’s metal plate-mounted standard jack socket offers superior durability and easy maintenance.
| General | Construction | Bolt-on |
|---|---|---|
| Scale Lengh | 34" (863.6 mm) | |
| Body | Body Materials | Flamed Maple / Alder |
| Body Finish | Translucent Black, Dark Red Burst: Gloss Polyurethane Matte Amber, Natural Satin: Satin Polyurethane |
|
| Neck | Neck Materials | Maple/Mahogany 5-Piece |
| Neck Finish | Satin Polyurethane | |
| Fingerboard Materials | Rosewood | |
| Fingerboard Radius | 10" (250 mm) | |
| Fret Wire | Medium | |
| Number of Frets | 24 | |
| Nut Materials | Urea | |
| Width @ 0 Fret / 12th Fret | 38.0 / 56.4mm | |
| Thickness @ 1st Fret / 12th Fret | 19.5 / 21.5mm | |
| Electronics | Neck Pickup | Double Coil / Alnico V |
| Middle Pickup | - | |
| Bridge Pickup | Double Coil / Alnico V | |
| Controls | Master Volume, Pickup Balancer, 3-BAND EQ(Bass, Middle, Treble), Active/Pssive Switch. | |
| Pickup Switch | - | |
| Hardware | Bridge | Die-cast |
| String Spacing | 19mm | |
| Tailpiece | - | |
| Tuning Machines | Covered / Die-cast | |
| Pickguard | - | |
| Others | String Gauge | D'Addario EXL170 / 0.045-0.100 |
